Printing a test label can check whether the printer has any problems.
Products affected: w1110 (1E46, 1E42, 1E36), PB-SP100 (1E52, 1E49)
Print a test label can check whether the printer has any problems.
To print a test print

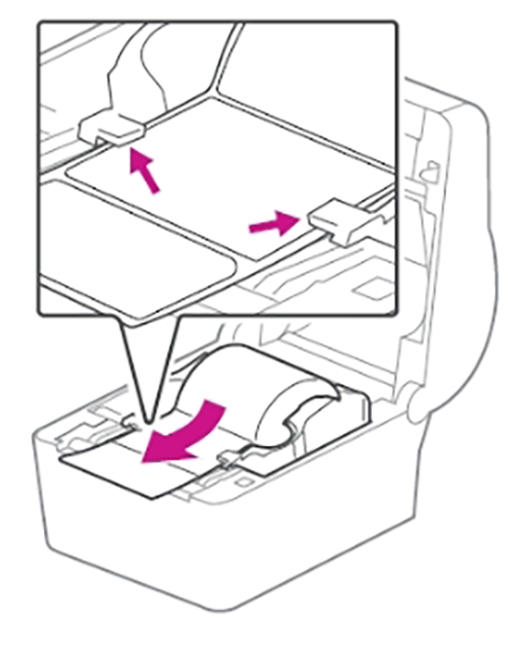

- Make sure that the label roll has been installed properly. To do this spread the label holder then insert the label roll into the printer.
- Pull the label roll under the guides and out to the front of the printer.
- Close the cover and press the Feed button to feed the label.
- Turn on the power while holding down the Feed/Cancel button until the test label begins to print. This may take around 10 seconds.
The test label with show the current printer configuration information. After the self-test results are printed, a printer enters into print ready mode.
